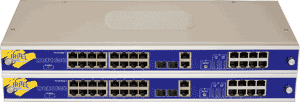

MGE88/168G Stackable Gigabit L2/L3 Managed Ethernet Switch with 16 x FE, 4 x GE and 8 x E1 Media Converters

Print | Email
MGE168G
  • Up to 4 10/100/1000 Mbit/s Auto- Negotiation RJ45 ports supporting Auto-MDI/MDX, 1 G SFP optional
  • Up to 16 10/100 Mbit/s Auto-Negotiation RJ45 ports supporting Auto-MDI/MDX
  • Up to 8xE1 2048 kbit/s ITU-T G.703 ports with EoE1 media converters, HDCL encapsulation
  • Stacked devices are fully manageable and behaves as a single device 8 x Fast Ethernet
  • Port-Based VLAN and IEEE 802.1Q tag VLAN
  • Static MAC address and filtering MAC address management
  • Static Port Priority and IEEE 802.1p Class of Service (CoS) with 4-level priority queuing
  • Firmware upgrade, gold configuration backed up and restored
  • Rack/Desktop - mountable case optionsInternal power supply, -48 Vdc or 220 Vac option

Description

IRITEL MGExxxG series of High performance Managed Ethernet Switching devices Besides of the true Ethernet access offers versatile combination of user interfaces integrated together with media converters thus reducing the need for external media converters. Stacked switches behaves as larger switch managed as a single device.

Data sheets (pdf): MGE88/168G (Serbian), MGE88/168G (English)

Category: Ethernet Access and Interface Converters
